Frequently Asked Questions

About Move 1200 L

Which radio remote controls can broncolor Move be controlled with?

- broncolor RFS 2.1 system:

RFS 2.1 Transceiver (Transmitter kit) | item number 36.133.00

- broncolor RFS 2.2 system:

RFS 2.2 C Transmitter (Canon) | item number 36.160.00
RFS 2.2 F Transmitter (Fujifilm) | item number 36.163.00
RFS 2.2 N Transmitter (Nikon) | item number 36.161.00
RFS 2.2 S Transmitter (Sony) | item number 36.162.00

What type of battery does broncolor Move come with?

It comes with a 87.1 Wh / 14.4 V / 6.6 AH Li-FePo4 battery with integrated battery status (item number: 36.152.00).

Does the Move power pack feature the broncolor HS function?

All Move power packs support the broncolor HS function if they have the software version 48.07 or later. Move software updates must be done by an authorised broncolor Service Centre. While working in HS mode you are only able to use flash power level 6 to 10. Further, please note that broncolor HS for Move is optimized for the use with one lamp. If HS is activated only lamp channel 1 is active.

In addition, the broncolor RFS 2.2 transmitter is needed, which is available for Canon, Fuji, Nikon and Sony cameras.

Does the Move power pack feature WiFi?

No, it does not.

Can the Move power pack be controlled via bronControl App?

No, it cannot.

Can all current broncolor lamps be used with all broncolor power packs?

Yes, with the following restriction:

Move 1200 L does not offer the modelling light function in combination with
- Pulso G
- Pulso Twin
- Unilite
- Picolite
- Ringflash C
- Striplite
- Boxlite
- Litestick (does not provide modelling light in general)

MobiLED does offer modelling light with Move 1200 L.

Is colour consistency maintained when using HS?

Activating the broncolor HS function has a small influence on colour temperature.
However, other light sources such as daylight or ambient light usually have a stronger impact on colour temperature.
Hence, the broncolor HS function’s influence on colour temperature is alleviated in sunny conditions.
HS is meant to be used in a bright outdoor environment.

How does HS compare to short flash duration?

Without HS, the minimal flash duration cannot be shorter than the fastest shutter speed of the camera (X-sync).
The broncolor HS function provides a way to circumvent the restriction imposed by the X-Sync time:
1) The flash fires before even one pixel of the image sensor has been uncovered
2) The first shutter curtain starts to open.
3) The second shutter curtain starts to close (think of it as a scanning procedure).

The flash continues to burn (like a continuous light) and only stops when the scanning procedure is complete. For this reason we need the longest possible flash duration. The result is a great feature; now you can use a large aperture to provide an out-of-focus background, or simply freeze super-fast motions.

Is the full power range of the flash available in HS, or am I limited to certain power levels when using HS?

While working in HS mode you are only able to use flash power level 4 to 10 with Siros L.
While working in HS mode you are only able to use flash power level 6 to 10 with Move 1200L.

Will using HS impact the battery life (does it use more power?)

In general – under the same lighting conditions (i.e. ambient light) – the broncolor HS function does not impact battery life.

If I have a camera not supported by HS (Fuji, Leica, Phase One / Mamiya) is there any risk of damage to the camera using an RFS2.2 transmitter, should I use an RFS2.1 transmitter?

RFS 2.2 is available in three versions, for Canon, Nikon and Sony, always optimized for its operation.
The use with other camera systems is not recommended.
The RFS 2.1 transmitter is a more universal device, hence able to work with many camera makes other than Canon, Nikon or Sony.
Please note that with the RFS 2.1 the broncolor HS function is not supported.

What about brightness gradation when using the broncolor HS function?

Under studio (“interior”) conditions, a certain degree of brightness gradation (from top to bottom) may occur. This effect varies depending on the camera model.
Outdoors in bright sunlight – the ideal environment for the broncolor HS function – the mentioned brightness gradation is neglectable.

Download

Operating instructions EN
Download.PDF
Operating instructions DE
Download.PDF
Operating instructions FR
Download.PDF
Datasheet EN
Download.PDF
Transporation Certificate
Download.PDF
Battery indicator EN
Download.PDF
Battery indicator DE
Download.PDF
Battery indicator FR
Download.PDF

Move 1200 L

First-class on location

Move Outdoor Kit 1 Move Outdoor Kit 2 Move Outdoor Para Kit

31.037.XX

Manufacturer’s Suggested Retail Price | excl. VAT

9,104.00 EUR

To be ready for shooting "on location" our Move 1200 L power pack is available as a kit also. Handy packed in a Outdoor trolley backpack, two MobiLED lamps, Move 1200 L protective bag, one Softbox 60 x 60 cm (2 x 2 ft) and one umbrella Ø 85 cm as well as a daylight adapter. The Outdoor trolley backpack can be taken onboard as hand luggage.

All Move power packs are “HS” compatible if they have the software version 48.07 or later. “HS” lets you use flash in combination with shortest shutter speed settings on your camera. All you need for this is the RFS 2.2 trigger, which is available for Nikon, Canon, Sony and Fujifilm cameras.

includes:
1 Move 1200 L power pack
2 MobiLED lamps
1 Rechargeable lithium battery
1 Battery charger
1 Softbox 60 x 60 cm (2 ft x 2 ft)
1 Umbrella silver/black Ø 85 cm (33.5")

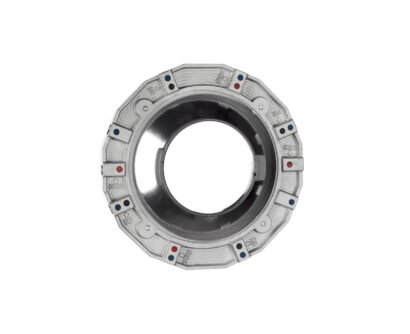

1 Speed Ring broncolor for Softbox / Octabox
1 Mains cable (country-specific)
1 Move 1200 L protective bag
1 Bag for Move's rechargeable battery
1 MobiLED daylight adapter
1 Adapter cable for Move battery and MobiLED
1 Synchronous cable 5 m (16.4 ft)

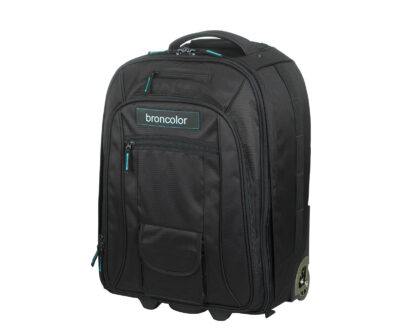

1 Outdoor trolley backpack
1 Operating instructions
1 Safety instructions
