Frequently asked questions

about RFS 2.2 Transmitter

What kind of radio transmitters are available?

RFS 2.1 transmitter kit (36.133.00)
RFS 2.1 receiver kit (36.134.00)
RFS 2.1 transmitter / receiver kit (36.135.00)

RFS 2.2 C (Canon) (36.160.00)
RFS 2.2 F (Fuji) (36.163.00)
RFS 2.2 N (Nikon) (36.161.00)
RFS 2.2 S (Sony) (36.162.00)

On what frequency do broncolor radio controls transmit?

RFS 2.1: 2.4 GHz

RFS 2.2 C/F/N/S: 2.4 GHz

Download

Looking for more details?

RFS 2.2 transmitter

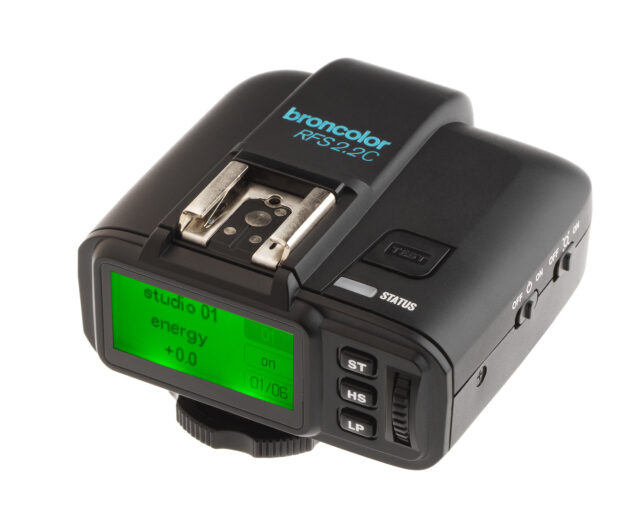

Broncolor RFS 2 2 C Transmitter Canon 36 160 00

The RFS 2.2 transceiver operates as a remote control or radio flash trigger for one or more broncolor power packs or monolights equipped with an RFS 2 interface. Power packs or monolights not equipped with an RFS 2 interface can be operated by connecting an RFS 2.2 transceiver (as a receiver). RFS 2.2 includes the new broncolor HS technology which allows exposure times up to 1/8000 s and is available at the moment for Siros L, Siros 800 S, Siros 800 and Move with the respective software update.

Need help? - Go to our online knowledge base

RFS 2.2 transmitter

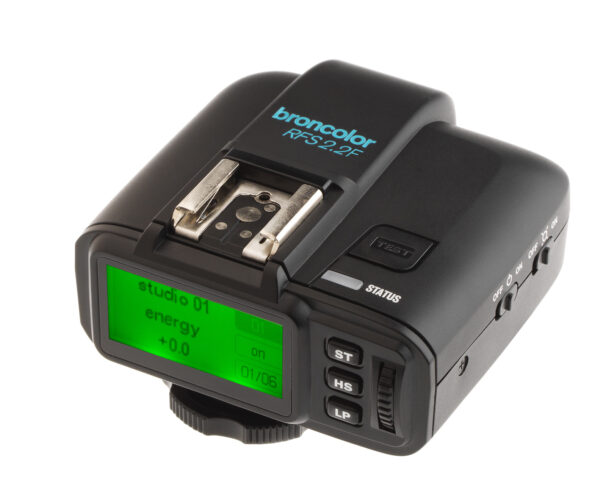

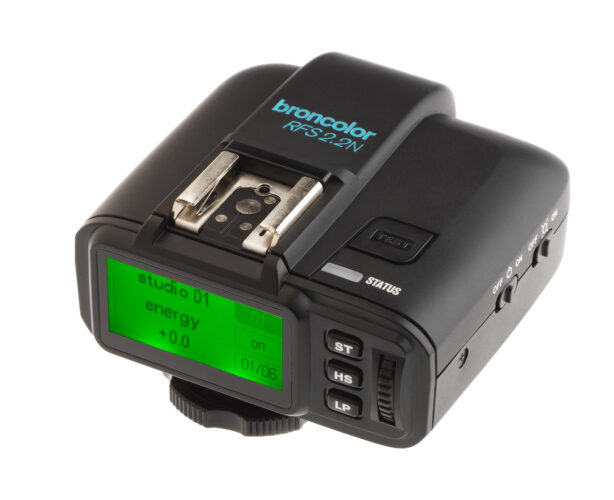

RFS 2.2 C transmitter (Canon) RFS 2.2 N Transmitter (Nikon) RFS 2.2 S transmitter (Sony) RFS 2.2 F transmitter (Fujifilm)

36.160.00

Manufacturer’s Suggested Retail Price | excl. VAT

138.00 EUR

  • Studio address setting range: 1-99
  • Lamp address setting range: 1-40
  • Frequency: 2.4 GHz
  • Exposure speed, focal-plane shutter in HS mode: up to 1/8000 s
  • Flash triggering by: Integrial hot shoe, middle contact / Sync connection on side
  • Operational distance in open air: up to 50 m / 164 ft
  • Operational distance in a building: up to 30 m / 98 ft
  • Dimension (l x w x h): 72 x 55 x 52 mm / 2.8 x 3.0 x 2.0''
  • Weight: 100 g / 0.2 lbs (incl. batteries)
  • Releases per second: 100
  • Power supply: 2 AA batteries
  • Typical battery life span: approx. 8-12 months / 100'000 flashes


Firmware update instructions
